Junction Boxes

Hi Chris,

I want to thank you for the excellent workmanship on my new entrance panel! I have seen similar panels by name brand manufacturers that cost hundreds of dollars more and did not exceed the quality of your products. Your attention to detail and design far outweighed my expectations. I certainly appreciate your availability by phone and email initially, and throughout the manufacturing process. I was also impressed with the fast turn around time from order to delivery, and the professional packing job. Customer service is what keeps a company alive and growing, and you are certainly on the right track. I have already referred several members of our local radio club to you, and will continue to do so.

Thanks again!

Bob Molczan KA7VPR

President, Oro Valley Amateur Radio Club

Hi Chris,

Received my order today, very fast turn around. You have just restored my faith in quality products made in the good ole USA. Your entrance box is beautiful - no sharp edges, gorgeous copper sheet, nice paint finish and everything just plain right. Packing was excellent with attention to detail to prevent any shipping damage. Thanks for all the plastic plugs. Wife ate all the candy! And to top it off, all at very reasonable price. Your efforts are appreciated.

Again, big thanks,

Jeff KK6DAQ

*****

15”x15”x6”, 16 ga. galvanized steel box

Options:

Grommets (Specify quantity after adding to cart.)

Plastic plugs (Specify quantity after adding to cart.)

$381

$.75

$.50

Hi Chris:

Thank you for reducing the shipping charge on my order. I appreciate you working with me. I will need other items from you to complete my installation, so will be ordering again as soon as I get squared away with what I have. It has taken me a lot longer than expected with the bad winter weather conditions, work and family obligations. Everything that I have ordered from you has worked out great especially the cable entrance panel, concrete mounting fixture and Morgan arrestors. If you ever want to use me as a reference for your products, please feel free to do so.

73, John, N2LD

*****

Chris, I received my 16x20 panel yesterday, and it was packaged very securely, I opened the box and was immediately impressed with the powder coat. I pulled the unit out of the box, it was very sturdy and you could tell the craftsmanship that went into this product. I am really impressed with the quality and workmanship that goes into your products. I would definitely recommend your company to anyone.

KC7VX

*****

Entry Panel is very high quality and easy to setup and use. Chris has been very patient and helpful as I called and asked questions.

Mark KC3SL

*****

9/1/2014 Best buying experience for HAM equipment. Amazing speed. Great for advice by email before buying (I asked many questions). And this entry panel (mid size thick steel, powder-coated) is built like a tank. I'm sorry to say I'm not used to high quality like that anymore, so I was amazed. This is freak... heavy :-) And shipping... I got it in less than a week. lightning arrestor already mounted inside... So a huge thank you. The build makes sense, from the way the pieces of metal go together so water does not go in, to the weather strip, the really cool nuts with integrated gripping 'thingy' (really cool, first time I see that). This screams quality all over it. If you have something I need, I'll buy it from you. Thanks a lot. Thierry KF7MXQ

*****

One of the best, if not the best, on-line buying experience of ham equipment I've had. Answered my initial questions on the same day; provided truly constructive advice on the diagrams I sent; built the unit and shipped within a week of my order. Materials, fit and finish well exceeded my expectations. My local builder was slow in completing my house and I managed to lock the box and lose the key before installing it on the exterior wall. I contacted Chris and he solved the problem immediately, repaired the box and shipped it back within a week. What a pleasant person to be working with! Can't say enough good things about buying from KF7P Metalwerks. Tom KJ4WQR

*****

Excellent Quality and customer service. Very pleased with my install! Chris made sound recommendations after quickly reviewing my order - I appreciate his feedback. Highly recommended! Pictures of my install at ko4gs.org

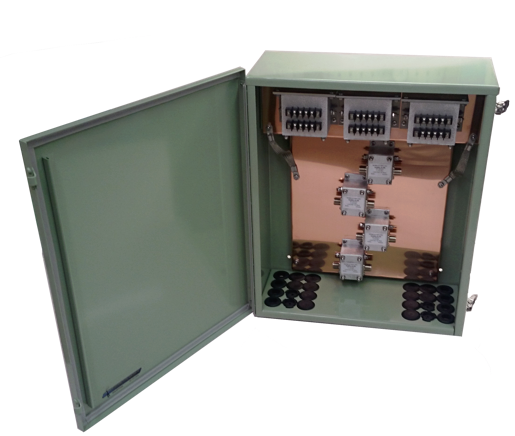

Gasketed lid shown to keep out water, plus latch hasp and reinforced lid.

Lockable stainless steel latch.

Grommeted holes for cable entry/exit, or larger cutouts for conduit can be used.

Grommets can pass a standard PL-259 connector, and additional holes can be sealed with removable plastic plugs for future expansion.

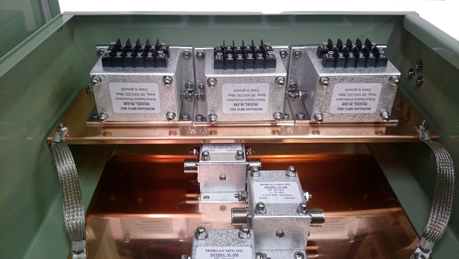

Detail of copper bridge: All Interceptor Series™ boxes feature a copper bridge mounted on stainless studs for easy removal or maintenance. The increased depth (6”) of box allows coax arrestors to utilize entire area of main copper sheet, with rotor/control arrestors above to save space.

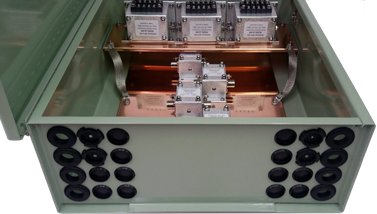

Grommets and plastic plugs as seen from bottom. Also note slots in bottom corners if grounding with flat copper strap is desired.

• Made from 16 gauge galvanized steel
•Powdercoated your choice of many colors, seen below.
•Lockable latch, padlocks available below.
•Gasketed and reinforced lid
•Copper mounting sheet
•Copper bridge holds up to three control line units.
•Bridge grounded to main copper sheet with two braided jumpers.
•Slots on bottom for copper strap to enter and ground copper sheet.
•Grommets on bottom for cables; extra holes can be plugged for future use.
•Larger cutouts for conduit in bottom also possible.

Medium junction boxes come with all standard features as pictured and described above, including main copper sheet and bridge. Medium boxes can hold up to 6 Morgan units (two double units and two single units). If using Alpha Delta up to 8 units will fit, or 7 Polyphaser units. Three Morgan M-348 control line arrestors will fit on the bridge above.

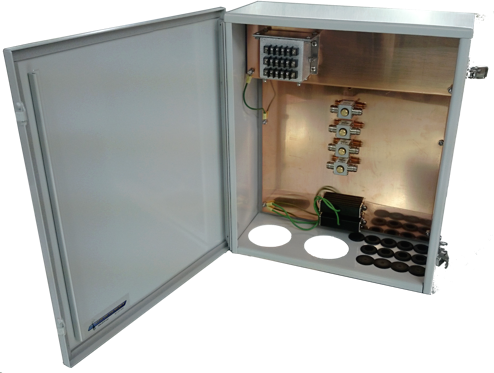

Large junction box in gray powdercoat. Cables enter box from bottom in two 3” conduits from radio shack, and exit to tower through 13 grommets on bottom right. Bridge has one Morgan M-348 unit (at the moment) and four Alpha Delta coax arrestors. Also seen at bottom are two ethernet units.

Boxes are easily mounted on concrete slab with our concrete mounting fixture (available in Optional Accessories below.)

Powdercoat paint color chart. Click for larger version.

To order:

1) Choose box size below. Adhere to notes below as to how many arrestors can fit in each size.
2) Pick a paint color from chart above and type it in.
3) Pick number of grommets and plugs needed, and other accessories, in “Optional Accessories”

below. Remember each coax needs two grommets, in/out. These do NOT come with the box.

All accessories are a la carte.

4) If conduit is desired, let me know the size you plan to use in an email. I will correspond with you

before starting.

15”x18”x6”, 16 ga. galvanized steel box

Options:

Grommets (Specify quantity after adding to cart.)

Plastic plugs (Specify quantity after adding to cart.)

$432

$.75

$.50

Large junction boxes come with all standard features as pictured and described above, including main copper sheet and bridge. Large boxes can hold up to 8 Morgan units (three double units and two single units). Alpha Delta fits 10 units, or Polyphaser fits 9 units. Three Morgan M-348 control line arrestors will fit on the bridge above.

15”x21”x6”, 16 ga. galvanized steel box

Options:

Grommets (Specify quantity after adding to cart.)

Plastic plugs (Specify quantity after adding to cart.)

$497

$.75

$.50

Extra large junction boxes come with all standard features as pictured and described above, including main copper sheet and bridge. Extra large boxes can hold up to 10 Morgan units (four doubles and two single units). 12 Alpha Delta units can fit, or 11 Polyphaser units. Three Morgan M-348 control line arrestors will fit on the bridge above.

Concrete mounting fixture for entry panel.

Click pic for more info.

Terminal strip for rotor/control wire connections, 8 double terminals.

Price: $5.50

Copper wire lug for ground wire, 4-14 gauge, and 2-14 gauge.

4-14 ga., Price: $4.50

2-14 ga., Price: 5.25

Package of 25 self drilling sheet metal screws for mounting Morgan arrestors to copper or aluminum sheet.

Price: $4

Tinned copper ground braid, 1/2” wide and 3/4” wide. (Specify number of feet after adding to cart).

1/2”, Price: $1.10/ft.

3/4” Price: $2.25/ft.

Penetrox-A anti-oxidant connection grease. For all aluminum to aluminum and aluminum to copper connections. Prevents oxidation, corrosion and improves conductivity between arrestors and copper (or aluminum) sheet. Also great for antenna element construction.

2 oz., Price: $8.45

8 oz., Price: $20.95

Master Lock, brass lock with keys to keep nosy kids out of your entry panels. Fits on all boxes that come with new lid catch.

Price: $9.45

Weatherproof cable glands, for large RG8, and smaller RG58/8x cables. Note: Cables need to be run through BEFORE adding connectors. Cable glands useful in keeping box water tight when circumstances require cables entering from sides or top of box. For standard bottom fed cables, regular grommets are adequate. Glands are black in color.

Large (RG8), Price: $2.95

(fits in 7/8” hole)

Small (RG58/8x), Price: $2.95

(fits in 3/4” hole)

Rubber grommets for cable entry into boxes. FITS PL-259 and N CONNECTORS! Specify quantity after adding to cart.

Price: $.75/ea

Plastic plugs to seal unused holes. Specify quantity after adding to cart.

Price: $.50/ea

*****

Chris helped build my Interceptor Junction Box. Real good communications through out my build process. Had to switch to a darker blue which was ok, didn't know that he had other colors. Thanks so much for the hard work that went into this box. N1OND

Installation of arrestors or other items in entry panel boxes, includes hardware. (Arrestors only).

90˚ mounting bracket for M-348 units, rotates unit so terminal strip is facing up. Makes wiring duties much easier; with hardware.

Price: $9

For Morgan Mfg. lightning arrestors, go to our Morgan Mfg. products page.

For Alpha Delta lightning arrestors, go to our Alpha Delta products page.

For Polyphaser. lightning arrestors, go to our Polyphaser. products page.

We also stock and install POLYPHASER, ALPHA DELTA and MORGAN MANUFACTURING surge protectors in our boxes! Arrestors can be pre-installed for a small charge; see “Optional Accessories” below to select this option.

Price: $9/unit, any brand or model. Increase quantity after adding to cart.

Strut channel and clamps now available to secure cables.

Strut channel for junction boxes, entry panels, plus clamps and accessories can be found here, see link below.

Strut accessories

Masonry mounting kit for mounting an entry panel or junction box to a brick, stucco, or concrete wall. Requires a 1/4” masonry drill bit and (preferably) a hammer drill. Plugs install in a 1.5” deep by 1/4” hole; screws are stainless steel and 1.5” long, perfect for installation in the pre-punched mounting holes in the entry panels and junction boxes.

Price: Masonry mounting kit $4

Price: Screws only, for wood,

siding, etc. $2

Grommet to cable seals. Round foam tubing slides over coax cables and seals cable inside of rubber grommet. Keeps critters and cold air out of your entry panel box.

Price: $.75 ea.

Wire pulling lubricant

makes it easy to install

grommet to cable

seals. 2oz. is just

enough to install two

dozen seals without

having to buy a large container.

Price: $2.95 ea.

Grommet for ladder line!

Click pic for more info.
